📱 Example App Screenshots

TTBaseUIKitExample — 5 tabs showcasing UIKit, SwiftUI, Debug tools, and real-world API demos

📋 Menu

✨ Demos

🔗 DebugBridge

🔍 UI Debug

💡

Why "Run First"?

🏃‍♂️

Experience Before Theory

Seeing components in action creates mental models that make code infinitely easier to understand.

🧠

Pattern Recognition

Running the app reveals architecture patterns — Coordinator, ViewCodable, Config — before you read a single line.

⚡

10x Faster Learning

Developers who run examples first learn frameworks 10x faster than those who start with documentation.

⚡ Quick Start — 60 Seconds

From zero to running TTBaseUIKitExample in your Xcode simulator

1

Clone the Repository

Download TTBaseUIKit — the example project is included in the repository.

git clone https://github.com/tqtuan1201/TTBaseUIKit.git

2

Open in Xcode

Open the Xcode project. SPM dependencies resolve automatically — no extra setup needed.

open TTBaseUIKit.xcodeproj

3

Select Target & Run

Choose TTBaseUIKitExample scheme, pick any Simulator, press ⌘R to build & run.

✓

Now Explore!

Tap through all 5 tabs. Try the Demo features — call real APIs. Triple-tap any screen to activate the Debug Kit. Then start reading the code.

🔍 What's Inside the Example

5 tabs covering every aspect of TTBaseUIKit — from basic components to real-world API demos

📋

Menu Tab

Framework overview, theme config demo, base components showcase — TTBaseUIKit config, ViewConfig, SizeConfig, FontConfig all in action.

UIKit

✨

Demos Tab

7 real-world SwiftUI demos — Recipe Book, Product Catalog, User Directory, Social Feed, Quotes Wall, Todo Manager, Photo Gallery. All powered by live APIs.

SwiftUI + API

🔗

DebugBridge Tab

TTBDebugPlus macOS companion integration. Real-time log streaming, network inspection, remote screenshots — connect Mac ↔ iPhone via Bonjour.

v2.3.0+

🔍

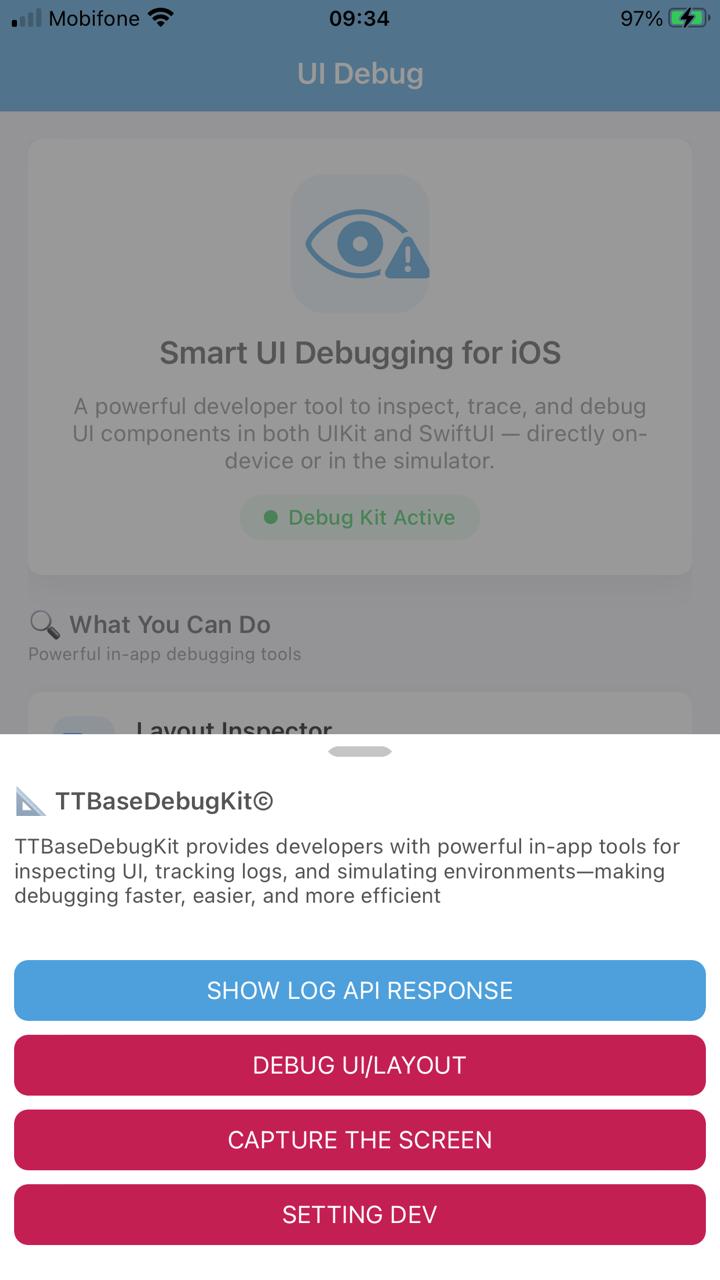

UI Debug Tab

Built-in TTBaseDebugKit — triple-tap layout inspector, API response logger, screen capture with annotations, developer settings panel.

v2.2.1+

👤

Contact Tab

Author info, links to documentation, GitHub, portfolio — shows how to build a simple profile screen with TTBaseUIKit.

Info

🧱 UIKit Demos Breakdown

11 dedicated UIKit demo categories covering all base views and patterns

📐

Auto Layout

Programmatic constraints with chainable helpers

📅

Calendar

Custom calendar view implementation

📊

Cell Types

Various table/collection cell patterns

🏗️

CollectionView

BaseUICollectionViewController demos

🧩

Components

Buttons, labels, text fields, images

📭

Empty Table

Empty state + retry pattern

💬

Message

Notification banners & alerts

🪟

Popup

Modal dialogs & bottom sheets

💀

Skeleton

Loading placeholder animations

📋

TableView

BaseUITableViewController patterns

📱

ViewController

ViewCodable lifecycle demos

🏛️ Code Architecture

Understand the patterns used in TTBaseUIKitExample

AppDelegate

Config + Start

→

AppCoordinator

TabBar + Navigation

→

ViewControllers

ViewCodable Protocol

1. AppDelegate — Config

// Configure Design System
let view = ViewConfig()
view.viewBgNavColor = UIColor.getColorFromHex(
    netHex: 0x4DA0DC)
view.buttonBgDef = UIColor.getColorFromHex(
    netHex: 0x4DA0DC)

let fontConfig = FontConfig()
fontConfig.HEADER_H = 18
fontConfig.TITLE_H = 14

let sizeConfig = SizeConfig()
sizeConfig.H_BUTTON = 50.0
sizeConfig.CORNER_RADIUS = 8.0

TTBaseUIKitConfig.withDefaultConfig(
    withFontConfig: fontConfig,
    frameSize: sizeConfig,
    view: view
)?.start(withViewLog: true)

2. AppCoordinator — Navigation

class AppCoordinator: Coordinator {
    func start() {
        let tabBar = UITabBarController()

        // Menu Tab (UIKit)
        let menuNav = UINavigationController()
        let menuCoord = MenuCoordinator(
            navigationController: menuNav)
        menuCoord.start()

        // Demos Tab (SwiftUI)
        let demosVC = DemoFeaturesView()
            .embeddedInHostingController(
                isHiddenTabbar: false)

        tabBar.viewControllers = [
            menuNav, demosVC, contactNav]
        window.rootViewController = tabBar
    }
}

📖 After Running — Deep Dive

Once you've experienced the app, explore these resources to understand every component

🧱

UIKit Components

72+ base views with full API reference

🎨

SwiftUI Views

51+ declarative views & modifiers

🛠

TTBDebugPlus

macOS companion debugger guide

📖

Getting Started

Full config reference & setup guide
